- Setting up PIA on pfSense
- pfSense 2.6.0 (OpenVPN Setup)
- It's long & involved... But those instructions get it working.
- & passing ALL traffic through PIA
- Firewall rules to route only traffic with specific sites through PIA
- NOTE: Apparently, "if you have a dead interface it won't let you create a new one" (more research needed...)
- Interfaces / Assignments
- Add the vpn as an interface
- Save & Apply
- Interfaces / OPT1
- rename it to VPN
- enable it
- Save & Apply
- Reboot the pfSense server
- System / Routing / Gateways
- Ensure that VPN_VPNV4 shows up
- Change Default gateway IPv4 to your original WAN_DHCP gateway
- Save & Apply
- Firewall / Rules / LAN
- Edit the "Default allow LAN to any rule"
- Scroll down to Extra Options & click Display Advanced
- Change Gateway to "WAN_DHCP..." (Your original WAN)
- Note: you could also use a gateway group. i.e.: a failover group
- Save & Apply
- Firewall / Aliases / IP
- Click +ADD
- Fill in Name with something useful
- Type should be "Host(s)"
- Put the IP or FQDN of the host you want to use the VPN for in IP or FQDN
- Save & Apply
- Firewall / Rules / LAN
- Click the Add button with the upward arrow
- Set Destination to "Single host or alias" and fill in Destination Address with the name of the alias you created above
- Scroll down to Extra Options & click Display Advanced
- Scroll further down & select "VPN_VPNV4..." for Gateway
- Save & Apply
- Sit back & relax
- At this point, traffic to the site you put in the alias goes through the VPN & everything else is handled normally.
- You can either add more addresses to that alias or create more rules to expand on this.

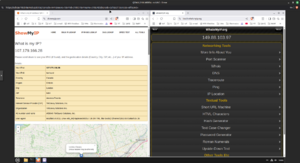

- In this screencap, the left browser shows the actual address of the machine & the right shows the PIA exit point in Tokyo. These are running concurrantly on a single machine.
